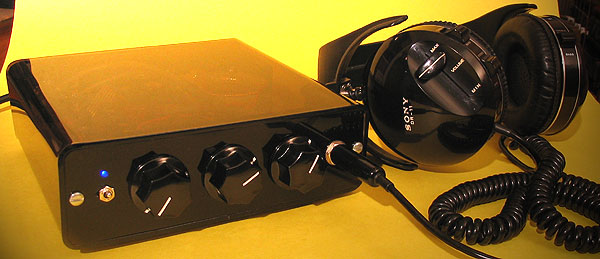

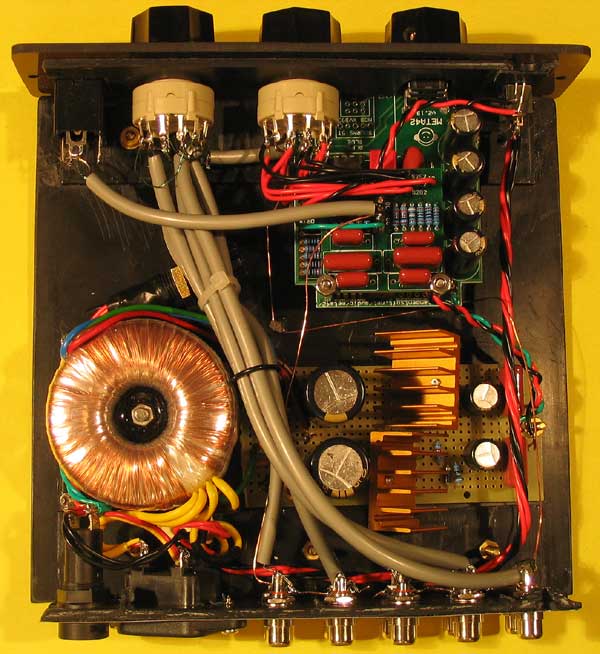

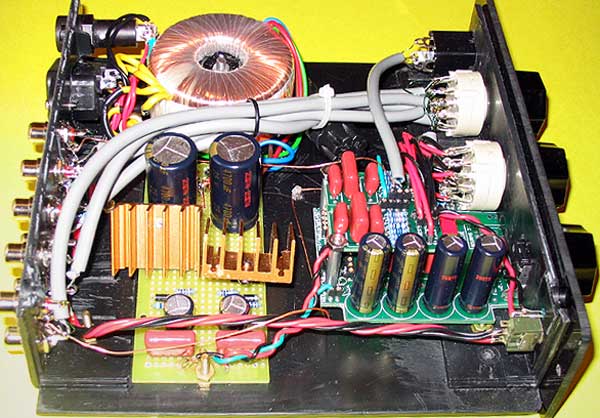

META42 pcb of a Jung Multiloop circuit with Linkwitz crossfeed. AD8620 SMD opamp with EL2002 buffers. SDS labs PSU circuit with erix Son of PS Porn layout (if the images aren't up, try Sijosae's sketch). Magnet wire in shielded housings for most of the signal hookups. And yes, you can see through the top. It's a fun thing.

Links for the curious:

• META42 homesite
• Headwize Headphone DIY
• Head-fi Forum
• Sijosae's Masterful SMD Technique
• Magnet Wire Interconnects
• Zerosoft's Gorgeous Meta

[Owen Briggs © 2003 | Last modified 29 April 03]
